Tram® Pretuned VHF 6-dB-Gain Marine L-Bracket-Mount 35-Inch Fiberglass Antenna with RG58 Cable and PL-259 Connectors

Tram® Pretuned VHF 6-dB-Gain Marine L-Bracket-Mount 35-Inch Fiberglass Antenna with RG58 Cable and PL-259 Connectors

$49.99 USD
$49.99 USD
Sale Sold out
Shipping calculated at checkout.

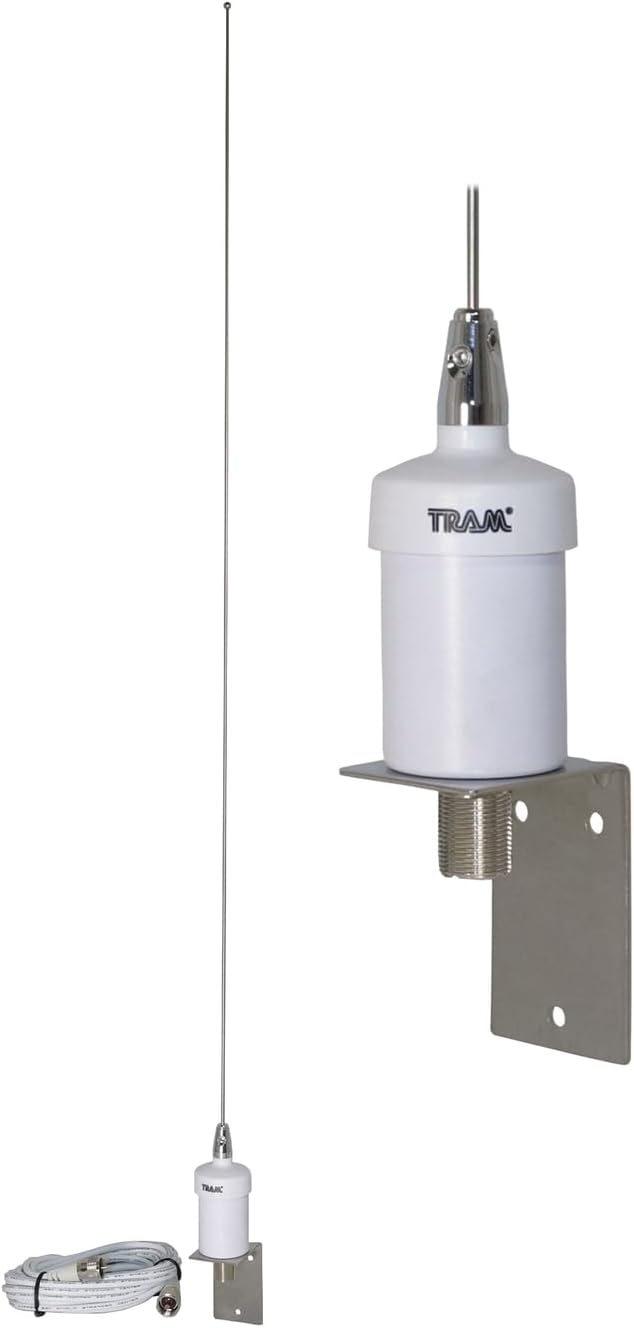

This Tram VHF Marine Antenna is pretuned for all marine-band frequencies. It has a low-profile, bottom-loaded coil, 35 in. stainless steel whip, and an L bracket for mounting on a sailboat mast. An SO-239 based is also supplied with RG58 coax and PL-259 connectors on both ends. The 17-7 PH stainless steel whip is 35 in. tall.
This item is packaged in retail packaging.
Warning: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Details

  • Covers all marine band frequencies
  • DC ground shunt fed 1/2 wave
  • Gain: 6 dB
  • Low-profile, bottom-loaded coil
  • 35 in. 17-7 PH stainless steel whip
  • Stainless steel L-bracket for mounting on sailboat mast
  • 15 ft RG58 coaxial cable with PL-259 connectors on both ends
 Warranty Document Prop 65 Label Document

Specifications

 1
 1.15 Pound (lb)
 2.75 Inch (in)
 1.9 Inch (in)
 35.6 Inch (in)
 39.5 Inch (in)
 2.8125 Inch (in)
 1.625 Inch (in)
 1 Pound (lb)

WRAP
 35.6 x 2.75 x 1.9 in., 1.15 lbs.
 1.625 x 2.8125 x 39.5 in., 1 lbs.
 Non-Powered
 Radio Frequency
 PL259, RG58
 Radio Broadcasting, Universal
 VHF
 50 Mile (mi)
 6 Decibel (dB)
 Mast Mount
 180 Inch (in)

35 in. Stainless Steel Whip, L Bracket, 15 ft RG-58 Coaxial Cable
 White
 1 year
 Yes
 E
 White
 Retail
 Taiwan
 Stainless Steel

Stainless steel
 Product does not require a battery
